SIMPLE, SAFE, ACCESSIBLE
Now and only available in France with LYRA ETK
The best-value solution for your first digital impressions!
Tested and validated by LYRA ETK, the No. 1 distributor and installer of intra-oral scanners in France since 2015, this CT scan offers all the features you need for your digital impressions and performance on a par with the best brands.
CLINICAL TEST
Dr. MARKOVIC – 9/09/2023 – iPhysio case on tooth 22 : screw-retained crown on implant
The scanner Cameo Elegant 3 presents many pros : good scan, acquisition speed, very good color rendering obvious advantage for iPhysio cases, well balanced in hand, pleasant light weight, easy to use, ergonomic interface.
Be aware that the scanner doesn't have a wireless available.

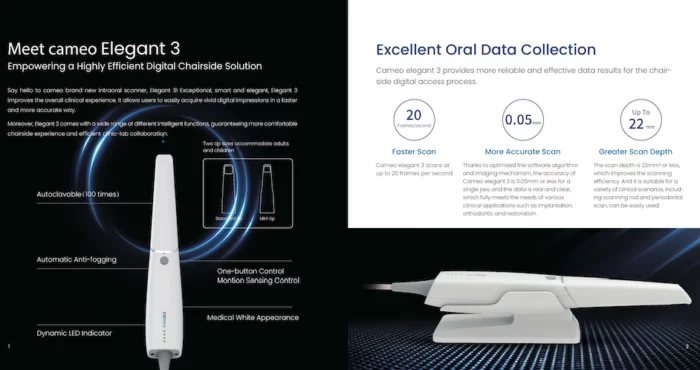

Cameo Elegant 3 CT scanner
Lightweight and ergonomic.
For use in implantology, orthodontics and prosthetics.
Allows full arch CT scans and 3-shape post CT scans in endodontics.
iPhysio compatible.
Compatible with 3 shape and exocad design software.
User interface in French.
Your CT scan for €13,188
For use in implantology, orthodontics and prosthetics.
Allows full arch CT scans and 3-shape post CT scans in endodontics.
iPhysio compatible.
Compatible with 3 shape and exocad design software.
User interface in French.
Your CT scan for €13,188
TECHNICAL SPECIFICATIONS AIDITE® CAMEO ELEGANT 3
| Scan Field | Standard scanner tip:16 mm x 12 mm * 22 mm Mini scanner tip: 12 mm x 9 mm x 22 mm |
| Scan Depth | -2-20 mm from exit surface of tip |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L x W x H) | 281 mm x 33 mm * 46 mm |
| Weight | 240 + 10 g (without cables) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3A |
| Recommended PC Configuration | |
| CPU | Intel Core i7-8700 or higher |
| Memory | 16 GB or higher |
| Hard Disk Drive | 256 GB SSD or above |
| Graphic Card (GPU) | NVIDIA® RTX 2060 668 or higher |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating system |
| Display Resolution | 1920 x 1080, 60Hz or higher |
| I/O Ports | More than 2 type-A USB 3.0 (or higher) ports |
Excellent precision
